Modern software systems often sound more complex than they really are. Terms like three-tier architecture and client-server model get used casually in conversations with engineers, product managers, and program managers, but they’re rarely explained in plain language.

In this post, we’ll unpack two foundational concepts that are closely related and frequently used together:

1. Three-tier architecture
2. The client-server model

We’ll start with a simple, real-world analogy and only introduce technical terminology after the mental model is clear. The goal is not to turn you into an engineer, but to help you reason more clearly about how software systems behave and how work flows through them.

---

Start With a Familiar Experience: A Restaurant

Imagine you’re sitting at a restaurant. You’re at a table. You see a menu. You interact with the waitstaff. You place an order. This entire experience, from your perspective, feels simple. You ask for something and eventually it arrives. But behind the scenes, there’s a lot more happening.

Once you place your order, someone takes that request to the kitchen. The kitchen doesn’t magically produce food out of thin air. Ingredients are fetched from storage. Multiple steps are followed. Decisions are made about preparation, timing, and presentation. Once everything is ready, the food comes back to you.

There are three distinct phases happening here:

• What you see and interact with directly
• Where the real work and decision-making happens
• Where information or ingredients are stored and retrieved

You don’t need to think about these phases while eating, but they absolutely exist. Software systems work the same way.

---

Phase One: What You See and Interact With

At the restaurant, this includes:

• The table
• The menu
• The waitstaff
• The overall experience of ordering

This is everything you directly interact with.

In software, this phase maps to user experience. It’s the part of the system that users can see, click, tap, scroll, and interact with. Examples include:

• A website in your browser
• A mobile app on your phone
• Buttons, forms, dashboards, and screens

At this stage, very little “real work” happens. You’re mostly capturing intent. You’re saying what you want, not how it should be done. This is why people often refer to this phase as UI or UX. It’s about interaction and experience, not decision-making.

---

Phase Two: Where the Work Actually Happens

Now let’s move behind the scenes. Once you place an order, the kitchen takes over. The kitchen:

• Figures out what you ordered
• Determines what steps are required
• Coordinates timing
• Applies the recipe

This is the core of the business. In software systems, this phase is where requests are analyzed and decisions are made. Let’s say you’re ordering a product online. Behind the scenes, the system needs to:

• Check whether the product exists
• See if it’s in stock
• Look up pricing
• Validate payment details
• Confirm the order is allowed

None of this logic lives in the user interface. It lives in the middle of the system, where rules, validations, and workflows are applied. This is where the “brain” of the system lives.

---

Phase Three: Where Information Is Stored

The kitchen can’t cook without ingredients. Those ingredients live somewhere else. A pantry. A storeroom. A refrigerator. In software systems, this is where data lives.

This includes:

• Product catalogs
• User accounts
• Orders
• Transactions
• Inventory
• Historical records

This phase is responsible for storing information safely and retrieving it when needed. The kitchen pulls ingredients from storage, combines them using a recipe, and produces a result. Software systems do the same thing with data.

---

Putting the Three Phases Together

When you zoom out, you can see three clear pieces working together:

1. The experience you interact with
2. The place where decisions and logic happen
3. The place where information is stored

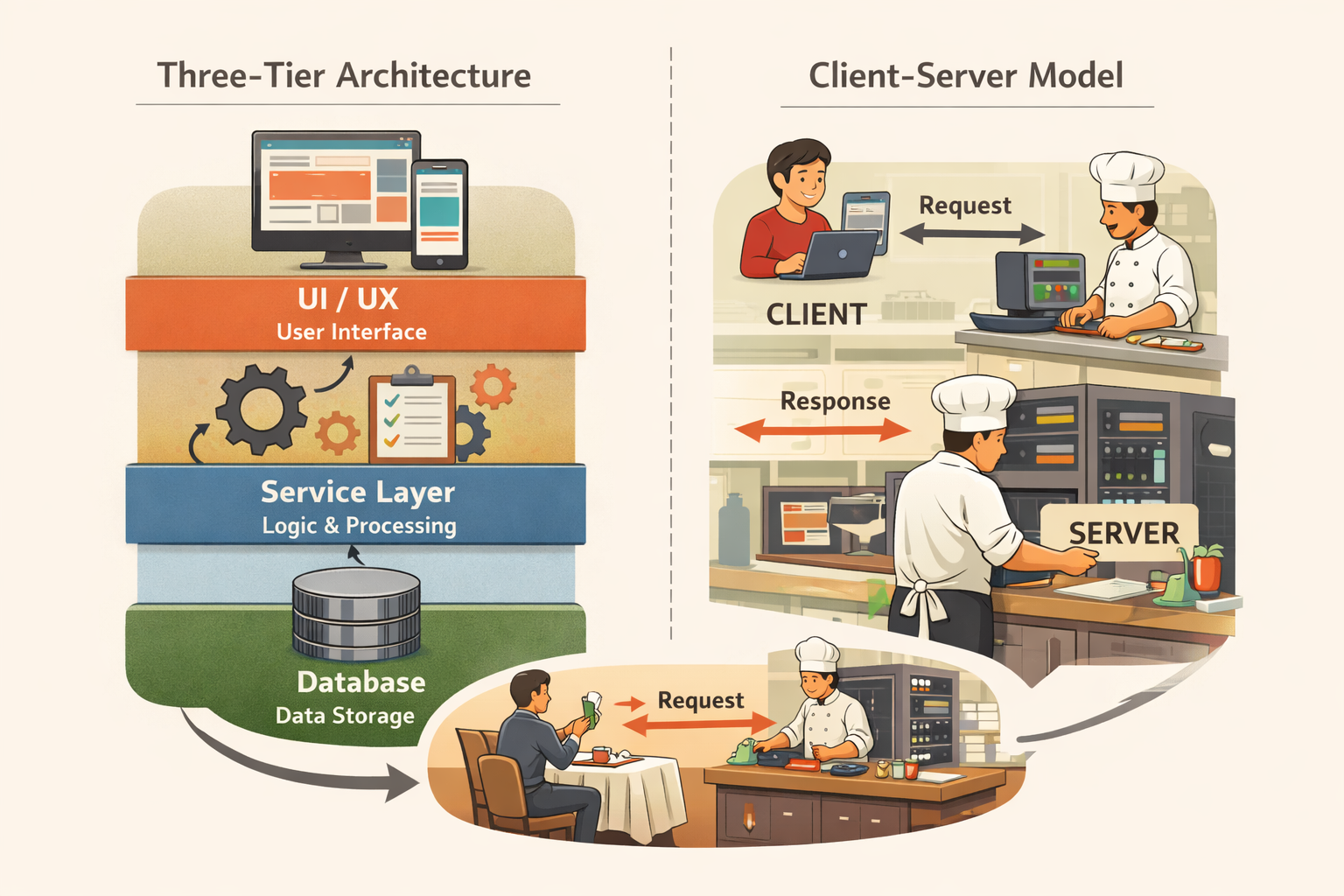

When engineers talk about three-tier architecture, this is exactly what they mean.

• A user-facing experience, which is what people see and interact with directly. This is often a website or a mobile application. You will frequently hear this referred to as the front-end, because it sits at the front of the interaction between a human and the system. Its primary job is to capture intent, display information, and create a usable experience. Very little decision-making happens here.

• A service or logic layer, which is where requests are processed and decisions are made. This is the part of the system that takes what the user asked for and figures out what needs to happen next. There are many ways this layer can be implemented, and you will hear different terms used depending on the context. When people talk about APIs, services, or microservices, they are usually talking about different implementations of this same layer. This is where business rules live and where systems coordinate work.

• A database, which is responsible for storing and retrieving information. This includes things like users, products, orders, and transactions. The database itself does not decide what should happen. It simply holds information and returns it when asked.

You will often hear engineers group the service layer and the database together and refer to them as the back-end. The back-end is everything that happens behind the scenes after a request leaves the front-end.

This is also where the term full-stack engineer comes from. A full-stack engineer is someone who works across both the front-end and the back-end, meaning they can build user-facing experiences as well as the services and data layers that power them.

The names matter less than the idea. The important takeaway is that software systems are intentionally split this way to keep responsibilities clear and manageable.

---

Now Zoom Out Even Further: The Client-Server Model

So far, we’ve talked about how one system is structured internally. Now let’s talk about how systems talk to each other. At its simplest, the client-server model is exactly what it sounds like.

A client asks for something.
A server serves that request.

That’s it.

Interestingly, this maps perfectly to the restaurant analogy. In British English, waiters are literally called servers. You ask for something, and they bring it to you. That’s probably not a coincidence.

In computing:

• A client is something that makes a request
• A server is something that responds to that request

---

What Is the Client in Software?

This is an important clarification. In the real world, you are the customer. But in software systems, the client is not the human. The client is the software acting on behalf of the human. That could be:

• A web browser
• A mobile application
• Another software system

When you click a button, your browser sends a request. When you tap “Place Order,” the app sends a request. Those programs are the clients. They don’t decide much. They mostly ask.

---

What Is the Server?

The server is the system that receives those requests and responds. It’s the kitchen. The server:

• Receives the request
• Figures out what needs to happen
• Pulls data from storage
• Applies business rules
• Sends a response back

That response could be:

• A confirmation message
• A receipt
• Updated data
• An error message

---

Clients Aren’t Always UI Apps Either

One final nuance that’s worth calling out. While clients are often web or mobile apps used by people, that’s not always the case. Sometimes, one system talks directly to another system. In that scenario:

• System A is the client
• System B is the server

No human is directly involved in that interaction, but the same model applies. One side requests. The other side responds. This is why the client-server model is so powerful. It applies whether you’re talking about people, apps, or systems talking to each other behind the scenes.

---

Why This Mental Model Matters

You don’t need to memorize terminology to work effectively with software teams. But having a clear mental model helps you:

• Ask better questions
• Understand where problems might live
• Reason about tradeoffs
• Communicate more clearly with engineers

When someone says “this lives in the service layer” or “the client just sends a request,” you now have a concrete picture to attach to those words. Software systems are not magic. They’re structured, intentional, and surprisingly intuitive once you see the pattern.

---

Final Thoughts

Three-tier architecture explains how work is organized inside a system.
The client-server model explains how systems talk to each other.

They’re different concepts, but they fit together naturally. Once you understand them, many other topics in software engineering become easier to grasp, including APIs, cloud computing, scalability, and system design.And just like a restaurant, when everything is working well, you don’t notice the complexity at all. You just enjoy the experience.

If you’re starting to see software systems less as “magic” and more as intentional layers of work, this perspective connects closely with Fundamentals of Computing: Where Does the “Work” Happen in a Software System?.

---

If this mental model helped clarify how software systems work, I’d love to hear your thoughts. What part clicked for you, or what still feels fuzzy?
